产品介绍
ABB-新一代通用传动ACS530,可靠简单，更胜从前。
Highlight 特点
Ø Wall-mounted 壁挂式安装
Ø IP20 (UL type 1) IP20防护等级
Ø Basic control panel 基本型控制盘
Ø Built-in choke 直流电抗器(R3-R9)
Ø EMC filter EMC滤波器
Ø Primary control program 基本控制程序
Ø Safe torque-off 安全转矩取消STO
Ø Cable lead through entry 进线接线盒
Ø Braking chopper (frames R0 to R3) 制动斩波器(R0-R3标配)
Ø Coated boards 涂层电路板
Ø Quick guides with default set of languages 快速安装指导

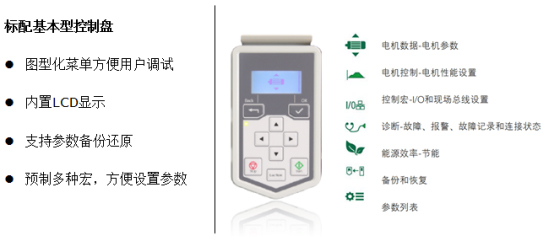

标配控制盘
【服务热线】： 0591-87951280
Square Torque | Frame | |||
Code No. | Type | 平方转矩应用 | Size | |
产品代号 | 产品型号 | PN（kW ） | I2N（A ） | 规格 |
电机额定功率 | 额定输出电流 | |||
3ABD00039824 | ACS530-01-02A6-4 | 0.75 | 2.6 | R0 |
3ABD00039825 | ACS530-01-03A3-4 | 1.1 | 3.3 | |
3ABD00039826 | ACS530-01-04A0-4 | 1.5 | 4 | |
3ABD00039827 | ACS530-01-05A6-4 | 2.2 | 5.6 | |
3ABD00039828 | ACS530-01-07A2-4 | 3 | 7.2 | |
3ABD00039829 | ACS530-01-09A4-4 | 4 | 9.4 | |
3ABD00039830 | ACS530-01-12A6-4 | 5.5 | 12.6 | R1 |
3ABD00039831 | ACS530-01-017A-4 | 7.5 | 17 | R2 |
3ABD00039832 | ACS530-01-025A-4 | 11 | 25 | |
3ABD00039911-D | ACS530-01-033A-4 | 15 | 33 | R3 |
3ABD00039912-D | ACS530-01-039A-4 | 18.5 | 39 | |
3ABD00039913-D | ACS530-01-046A-4 | 22 | 46 | |
3ABD00039811-D | ACS530-01-062A-4 | 30 | 62 | R4 |
3ABD00039812-D | ACS530-01-073A-4 | 37 | 73 | |
3ABD00039813-D | ACS530-01-088A-4 | 45 | 88 | R5 |
3ABD00039814-D | ACS530-01-106A-4 | 55 | 106 | |
3ABD00039815-D | ACS530-01-145A-4 | 75 | 145 | R6 |
3ABD00039816-D | ACS530-01-169A-4 | 90 | 169 | R7 |
3ABD00039817-D | ACS530-01-206A-4 | 110 | 206 | |
3ABD00039818-D | ACS530-01-246A-4 | 132 | 246 | R8 |
3ABD00039819-D | ACS530-01-293A-4 | 160 | 293 | |
3ABD00039909-D | ACS530-01-363A-4 | 200 | 363 | R9 |
3ABD00039910-D | ACS530-01-430A-4 | 250 | 430 | |
